Leading Aluminium Extrusion Manufacturers
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | NAVIEW |
| Certification: | CE, SGS |
| Model Number: | centre pivot roof window |
| Minimum Order Quantity: | 20 square meters |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | The four layers packages protect windows and doors from any injuring and arrive at your destination safety. Step 1: Protective tape prevent scratches on profiles Step 2: Corrugated fiberboard protect frames from damage, wrapped with protection film Step 3: |
| Delivery Time: | To be negotiated |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 SQM per month |
| Size: | Standard Or Customized | Profile Thickness: | 1.2mm - 2.0mm |
|---|---|---|---|
| Surface Treatment: | Powder Coated,Anodizing,Wood Grain Finish / Customized | Frame Material: | Aluminum Alloy |
| Glass: | Laminated,Double Tempered Glass,AS 2208 Certificate Sirglge Glass Or Double Glass 5mm + 9A + 5mm | Screen Netting Material: | Fiberglass,Stainless Steel,Nylon,customization |
| Material: | Aluminum Alloy+Glass,Aluminum Alloy 6063-T5,Alloy 6063/6061/6005/6060 T5/T6,Aluminum Alloy+Tempered Glass | Color: | Customized Colors,Wood Grain |
| Function: | Waterproof, Soundproof, Energy-Saving | ||
| High Light: | 5mm pivot roof windows,T6 aluminum pivot roof windows,T6 aluminum centre pivot roof windows |
||

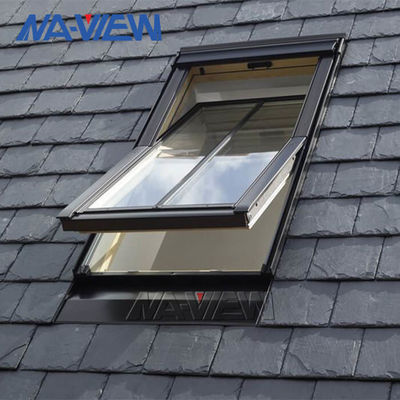

Navirew Latest Energy Saving Superior Modern Centre Pivot Roof Windows OEM ODM
Aluminum wood-grain composite skylight
1. Applicable angle between 15 ° and 90 °
2. Made of high-quality aluminum
3. 5mm+12mm+5mm double-layer tempered insulating glass, safer and warmer.
4. The new control handle is directly connected to the latest switch locking system so that the sash can also open the breeze when it is not open, which is safer and more practical.
5. The suspended skylight can stay at any angle for easy ventilation and lighting.
The sash can be flipped at 160° to facilitate the cleaning of the outside glass.
6. Can be installed with an electric window opener, weather sensor, easy to upgrade.
| Item | aluminum centre pivot roof window |
| Profile |
6063-T5/T6 normal aluminum,thermal break aluminum |
| Glass |
1.Double tempered glazing:5mm+12A(Air)+5mm; 5mm+12A+5mm tinted; 5mm+12A+5mm Low-E; 5mm+27A+5mm 2.Single tempered glazing: 3/4/5/6/8/10/12/15/19/21mm 3.Laminated glazing: 5mm+0.76+5mm, 5mm+0.38+5mm |
| Hardware |
1.German brand: Roto, Siegenia, Geze 2.Chinese brand: Kinlong,Hopo |
| Mesh |
1.Stainless steel security mesh 2.Aluminium security mesh 3.Fiberglass flyscreen 4.Retractable flyscreen |
| Surface treatment |
1.Powder coating 2.Anodized 3.Electrophoresis 4.Wood grain 5.Fluorine carbon coating |
| Parameters |
Double glass sliding windows Sounds insulation: RW ≥ 30 dB Wind pressure resistance: 4500 pa Air permeation resistance: 70/150 Water resistance: 450mm N6 CLASS based on AS2047 STANDARD |
NAVIEW has factories with over 600,000㎡, the equipment includes vertical anodizing line, vertical powder coating line, 5000T pressing machine and vertical automatic warehouse, etc.
A complete manufacture system has been established: casting, extruding, anodizing, electrophoresis, powder coating, PVDF, heat-transfer wood grain, polishing, brushing, heat insulation (stripping & glue injection), sandblasting, doors & windows fabrication, industrial extrusion finish machining, automated logistics systems, etc. NAVIEW has introduced automatic production lines in the factories, which help increase our working efficiency and effectiveness.
Q: How to get quotation?
A: The final price depends on specific requirements and designs. Contact us and we will send you our catalogue. Pls provide us with as much details as you know, concerning your application, design, size, thermal or not, color, quantity, surface treatment, trade terms and etc. Then we can make the quote.
Q: What is the standard size of your windows?
A: The size is customized according to different customer’s situations and requirements. We can have suggestions after knowing your details.
Q: How long for production and delivery?
A: Around 20 days for production. Delivery time varies from 15 to 40 days depending on the port of destination.
Q: What is your payment terms?
A: 30%～50% of the total amount by T/T as deposit. The remaining balance is completed before delivery.
